• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Audio system feature, 4-speaker system on Regular Cab models

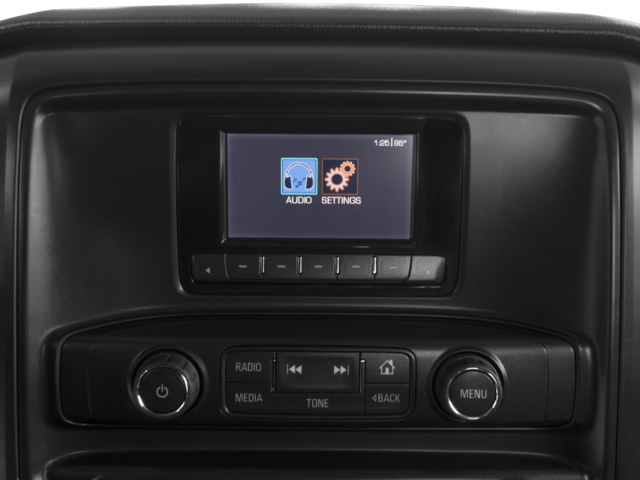

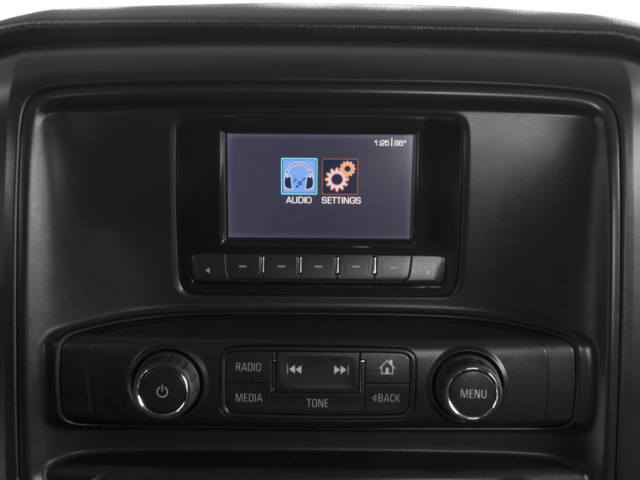

• Audio system, 4.2" Diagonal Color Display, AM/FM stereo with USB port and auxiliary jack (Upgradeable to (IOB) 7" diagonal color display radio with Chevrolet MyLink. Dynamic guidelines not available on IO3.) (Not available with (AZ3) 40/20/40 split-bench seat. Upgradeable to (IOB) 7" diagonal color display radio with Chevrolet MyLink. Dynamic guidelines not available on IO3.)
• Cruise control, steering wheel-mounted
• Door locks, power
• Driver Information Center, 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information
• Floor covering, Graphite-colored rubberized-vinyl

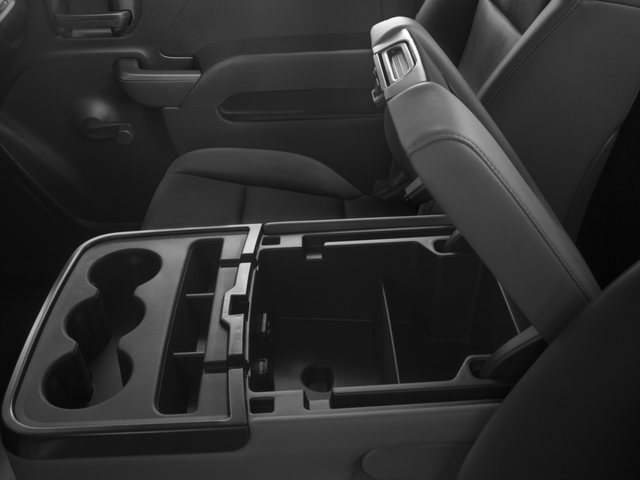

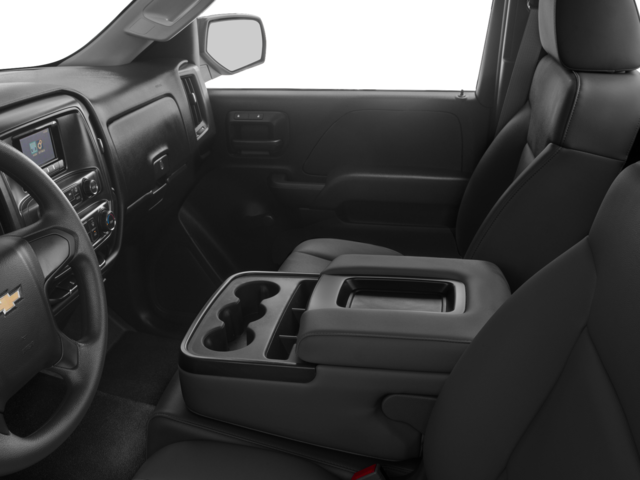

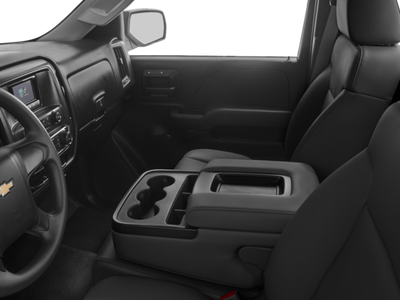

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (Upgradeable to (AZ3) front 40/20/40 split-bench seat.)
• Steering column, manual Tilt-Wheel

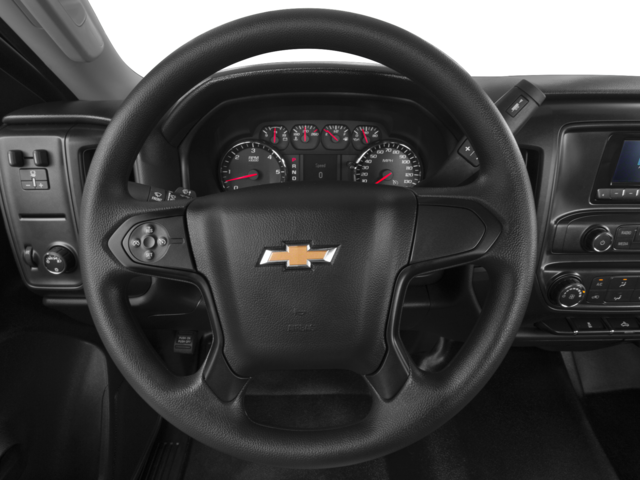

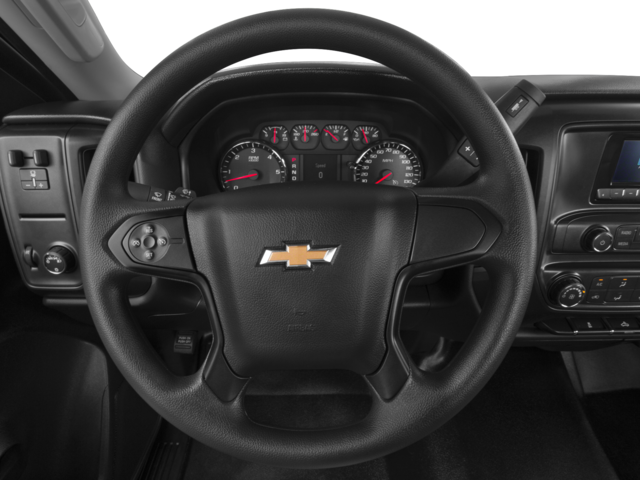

• Steering wheel
• XM Satellite Radio, delete

• Air cleaner, high-capacity
• Alternator, 150 amps
• Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc with DuraLife brake rotors
• Differential, heavy-duty locking rear
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, fully-boxed, hydroformed front section
• Pickup box
• Recovery hooks, front, frame-mounted, black
• Steering, Recirculating Ball with smart flow power steering system
• Suspension Package, Standard includes 51mm twin tube shock absorbers and 33mm front stabilizer bar
• Transfer case, with floor-mounted shifter (Included with 4WD models only.)

• Air bag deactivation switch, frontal passenger-side (Included and only available with (ZW9) Pickup box delete on Double Cab and Regular Cab models only. Note: Crew cab does not receive the air bag deactivation switch when ZW9 package is ordered.)
• Air bags Double and Regular Cab: Frontal Airbags- Driver single stage and Front Passenger dual-stage; Thorax side-impact, seat mounted, both driver and front passenger; Head-curtain front and rear outboard seating positions; Passenger Sensing System - Infant only suppression for passenger and passenger seat belt reminder status displayed on overhead console (With (ZW9) pickup box delete on Double and Regular Cab you will get single-stage frontal and thorax side-impact, driver and front passenger, and head curtain side-impact, front and rear outboard seating positions. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime Running Lamps with automatic exterior lamp control
• OnStar, delete also deletes driver information center compass
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Tire Pressure Monitoring System (does not apply to spare tire)

PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON

• provides an instrument panel-mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

SUSPENSION PACKAGE, STANDARD

• includes 51mm twin tube shock absorbers and 33mm front stabilizer bar (STD)

WHEELS, 17" (43.2 CM) STEEL

• includes 17" x 7.5" (43.2 cm x 19.1 cm) steel spare wheel. (STD)

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)

PICKUP BOX

• (STD)

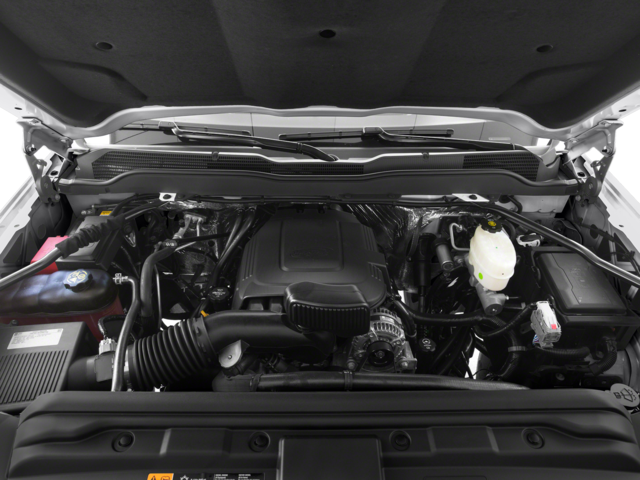

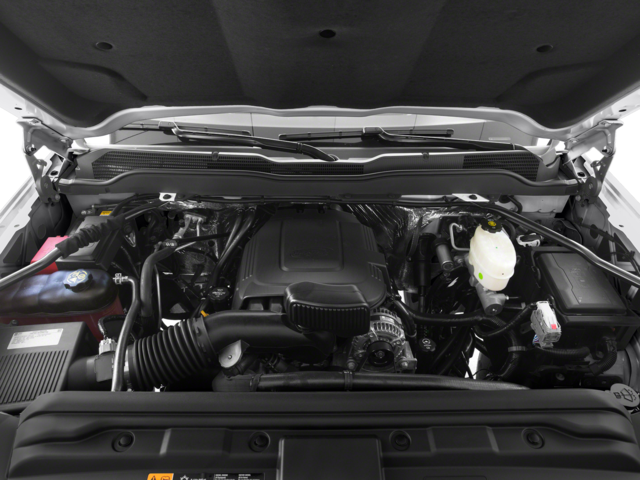

ENGINE, VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI, E85-COMPATIBLE, FLEXFUEL

• capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm
• 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) (STD)

SNOW PLOW PREP PACKAGE

• includes power feed for backup and roof emergency light
• (KW5) 220-amp alternator with gas or diesel engine
• forward lamp wiring harness
• (TRW) provision for cab roof mounted lamp/beacon
• (NZZ) underbody shields and Heavy-Duty front-springs

UNDERBODY SHIELD, FRAME-MOUNTED SHIELDS

• includes front underbody shield starting behind front bumper and running to first cross-member
• protecting front underbody
• oil pan
• differential case and transfer case

• GLASS DEEP-TINTED
• SUMMIT WHITE
• REMOTE KEYLESS ENTRY Includes (A91) remote locking tailgate.)
• PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON provides an instrument panel-mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp
• WT CONVENIENCE PACKAGE includes (AKO) tinted windows (KI4) 110V outlet (AQQ) Remote Keyless Entry (A91) remote locking tailgate (UVC) Rear Vision Camera and (DL8) outside heated power-adjustable mirrors; Regular Cab also includes (A31) power windows
• TRAILER BRAKE CONTROLLER INTEGRATED
• REAR AXLE 4.10 RATIO
• POWER OUTLET 110-VOLT AC
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• TRAILERING EQUIPMENT Trailering hitch platform 2.5" with a 2.0" insert for HD 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector to hook up parking lamps backup lamps right and left turn signals an electric brake lead battery and a ground The trailer connector also includes the 4-way for use on trailers without brakes - park brake/turn lamps Includes (JL1) trailer brake controller.
• GVWR 9500 LBS. (4309 KG)
• WINDOWS POWER WITH DRIVER EXPRESS UP AND DOWN AND EXPRESS DOWN ON ALL OTHER WINDOWS
• SUSPENSION PACKAGE STANDARD includes 51mm twin tube shock absorbers and 33mm front stabilizer bar (STD)
• ALTERNATOR 220 AMPS
• TIRE SPARE LT265/70R17E ALL-TERRAIN BLACKWALL
• WHEELS 17" (43.2 CM) STEEL includes 17" x 7.5" (43.2 cm x 19.1 cm) steel spare wheel. (STD)
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)
• AUDIO SYSTEM 4.2" DIAGONAL COLOR DISPLAY AM/FM STEREO with USB port and auxiliary jack (STD)
• REMOTE LOCKING TAILGATE
• PICKUP BOX (STD)
• PAINT SOLID
• WHEELS 17" X 7.5" (43.2 CM X 19.1 CM) FULL-SIZE STEEL SPARE.
• DARK ASH WITH JET BLACK INTERIOR ACCENTS CLOTH SEAT TRIM
• ENGINE VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE FLEXFUEL capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) (STD)
• REAR VISION CAMERA with dynamic guide lines
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER RECLINE with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE (includes driver's side spotter mirror)
• SNOW PLOW PREP PACKAGE includes power feed for backup and roof emergency light (KW5) 220-amp alternator with gas or diesel engine forward lamp wiring harness (TRW) provision for cab roof mounted lamp/beacon (NZZ) underbody shields and Heavy-Duty front-springs
• UNDERBODY SHIELD FRAME-MOUNTED SHIELDS includes front underbody shield starting behind front bumper and running to first cross-member protecting front underbody oil pan differential case and transfer case
• TIRES LT265/70R17E ALL-TERRAIN BLACKWALL
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hooks
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Tires - Front All-Season
• Tires - Rear All-Season
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• Split Bench Seat
• Adjustable Steering Wheel
• Power Door Locks
• Cruise Control
• A/C
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag Sensor
• Passenger Air Bag On/Off Switch
• Telematics
• Requires Subscription
• Tire Pressure Monitor

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.98 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Cargo Area Dimensions
• Cargo Box (Area) Height (in): 21.22
• Cargo Box Length : Floor (in)
• Cargo Box Width : Floor (in)
• Cargo Box Width : Top, Rear (in)
• Cargo Box Width : Wheelhousings (in)
• Cargo Volume (ft³): 76.3
• Tailgate Width (in): 62.20
• Cooling System
• Total Cooling System Capacity (qts): 16.4
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 220
• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Cab to Axle (in): 55.16
• Front Bumper to Back of Cab (in): 117.10
• Ground Clearance, Front (in): 9.75
• Ground Clearance, Rear (in): 9.10
• Height, Overall (in): 77.76
• Length, Overall w/o rear bumper (in): 224.43
• Wheelbase (in): 133.60
• Width, Max w/o mirrors (in): 80.12
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Interior Dimensions
• Front Head Room (in): 42.80
• Front Hip Room (in): 61.22
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 61.22
• Passenger Capacity: 3
• Steering
• Steering Ratio (:1), On Center: 16.1
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 45.9
• Turning Diameter - Wall to Wall (ft): N/A
• Summary
• Body Code: E63
• Body Style: Reg Cab Pickup

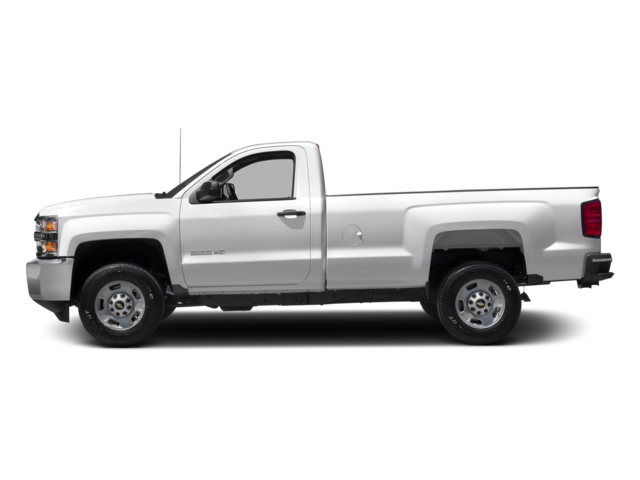

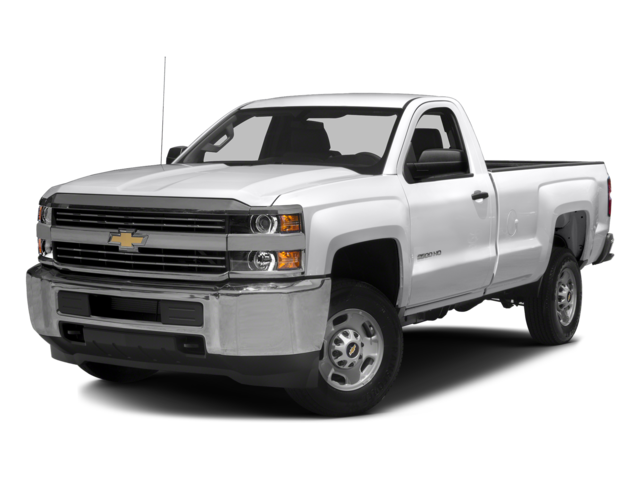

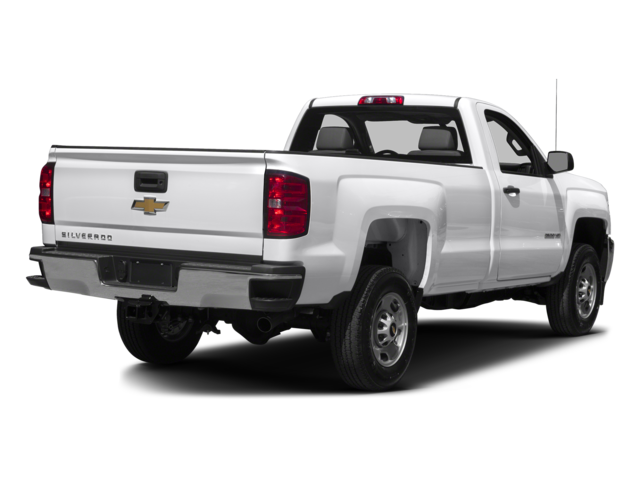

• Vehicle Name: Chevrolet Silverado 2500HD
• Suspension
• Axle Capacity - Front (lbs): 4400
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Axle Type - Front: Independent
• Axle Type - Rear: Semi Floating
• Shock Absorber Diameter - Front (mm): 51.0
• Shock Absorber Diameter - Rear (mm): 51.0
• Spring Capacity - Front (lbs): 4400
• Spring Capacity - Rear (lbs): 6200
• Stabilizer Bar Diameter - Front (in): 1.31
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Tires
• Front Tire Order Code: QXT
• Front Tire Size: LT265/70R17E
• Rear Tire Order Code: QXT
• Rear Tire Size: LT265/70R17E
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Spare Tire Order Code: ZXT
• Spare Tire Size: LT265/70R17E
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3625
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 14500
• Maximum Trailering Capacity (lbs): 14500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1450
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 14500
• Weight Information
• Curb Weight - Front (lbs): 3640
• Curb Weight - Rear (lbs): 2427
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 6200
• Gross Combined Wt Rating (lbs): 21100
• Gross Vehicle Weight Rating Cap (lbs): 9500
• Wheels
• Front Wheel Material: Steel
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Material: Steel
• Spare Wheel Size (in): 17 x 7.5
